Water heaters

SERIES 2

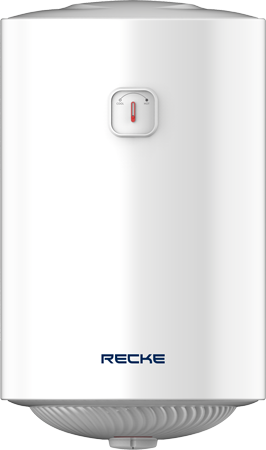

WH-230 30L

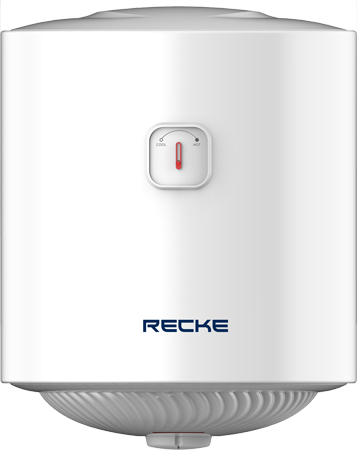

WH-250 50L

WH-280 80L

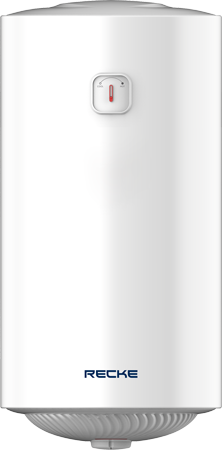

WH-2100 100L

Model WH-230 WH-250 WH-280 WH-2100
Capacity 30L 50L 80L 100L
Rated voltage / frequency 220V / 50Hz 220V / 50Hz 220V / 50Hz 220V / 50Hz
Rated power 1500W 1500W 1500W 1500W
Heating Element Copper Copper Copper Copper
Type of coating Enamel Enamel Enamel Enamel
Rated Pressure, Mpa 0.75MPa 0.75MPa 0.75MPa 0.75MPa
Temperature Range 30 - 75 ℃ 30 - 75 ℃ 30 - 75 ℃ 30 - 75 ℃
Overheat protection YES YES YES YES
Thermometer YES YES YES YES
Temperature control YES YES YES YES
Safety Valve YES YES YES YES
Power Cord YES YES YES YES
Mounting Kit YES YES YES YES
Type of mounting Vertical Vertical Vertical Vertical
Net  Dimension φ340*579 φ450*563 φ450*754 φ450*904
Packing Dimension 405*390*631 508*493*594 508*493*805 508*493*955
Net Weight 14.08Kg 17.82Kg 23.48Kg 27.51Kg
Gross Weight 15.96Kg 20.56Kg 27.02Kg 31.16Kg
