Water heaters

SERIES 1

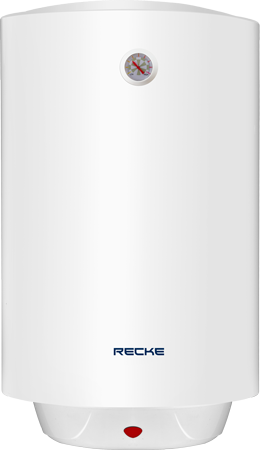

WH-130 30L

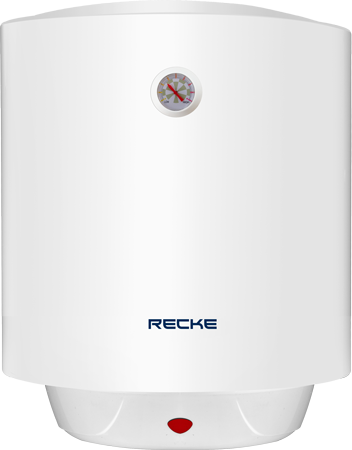

WH-150 50L

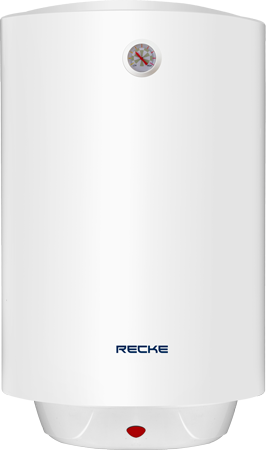

WH-180 80L

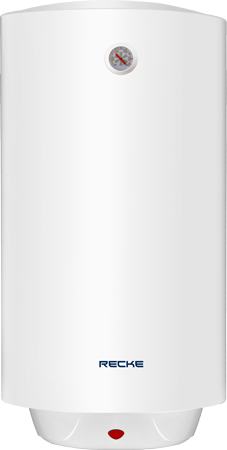

WH-1100 100L

Model WH-130 WH-150 WH-180 WH-1100
Capacity 30L 50L 80L 100L
Rated voltage / frequency 220V / 50Hz 220V / 50Hz 220V / 50Hz 220V / 50Hz
Rated power 1500W 1500W 1500W 1500W
Heating Element Copper Copper Copper Copper
Type of coating Enamel Enamel Enamel Enamel
Rated Pressure, Mpa 0.75MPa 0.75MPa 0.75MPa 0.75MPa
Temperature Range 75 ℃ 75 ℃ 75 ℃ 75 ℃
Overheat protection YES YES YES YES
Thermometer YES YES YES YES
Safety Valve YES YES YES YES
Power Cord YES YES YES YES
Mounting Kit YES YES YES YES
Type of mounting Vertical Vertical Vertical Vertical
Net  Dimension φ340*570 φ450*550 φ450*758 φ450*908
Packing Dimension 405*390*631 508*493*594 508*493*805 508*493*955
Net Weight 13.92Kg 17.95Kg 24.12Kg 27.75Kg
Gross Weight 15.37Kg 19.97Kg 26.48Kg 30.80Kg
